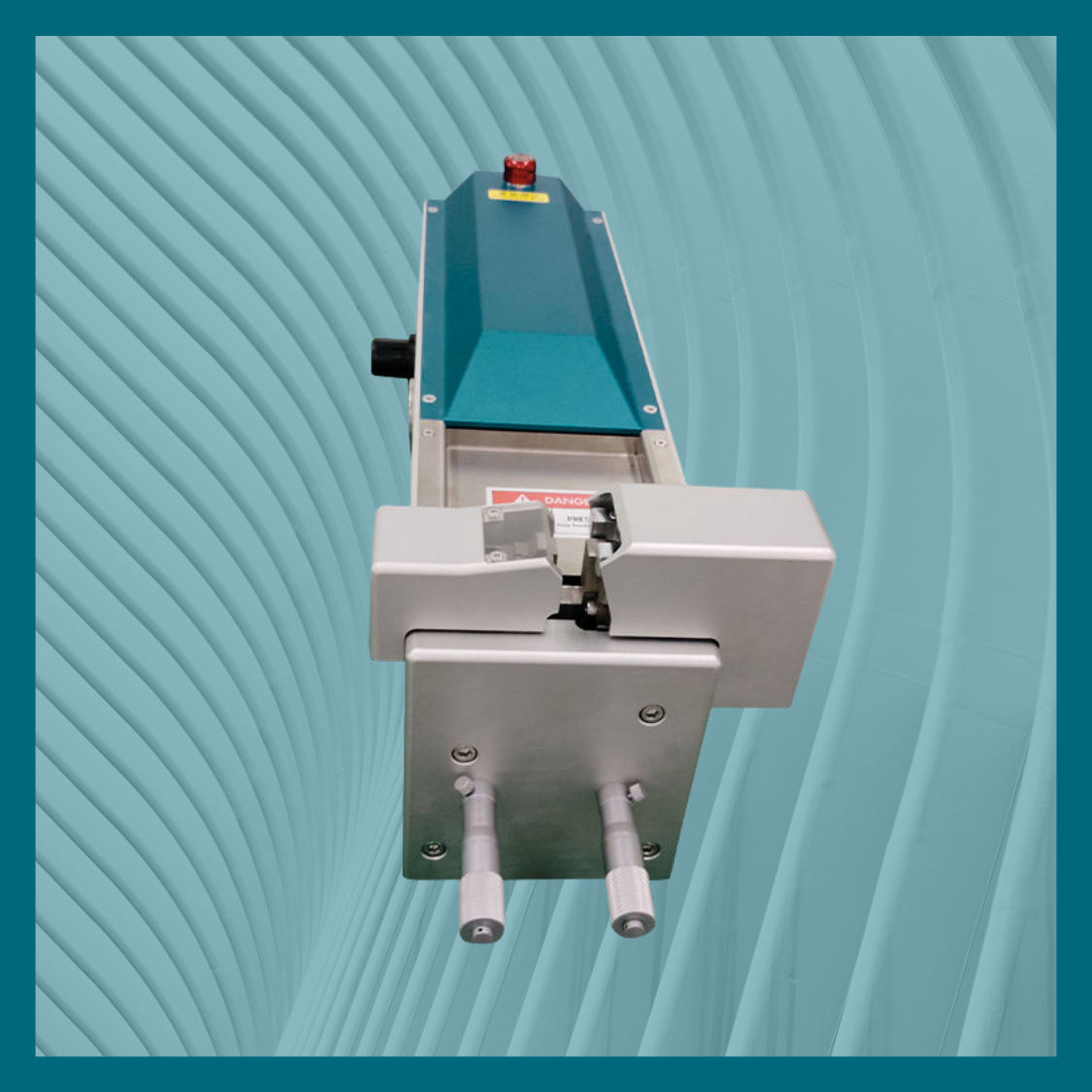

Product Overview
altrAsonix ultrasonic wire welding machine is designed for industrial environments where precision, reliability, and productivity are essential. The machine uses high-frequency ultrasonic vibrations combined with pressure to join metal wires together. Unlike traditional welding methods, ultrasonic welding is a solid-state joining process, meaning the materials are not melted during welding.
Because there is no melting of the base metals, the welded joint retains excellent electrical conductivity and mechanical strength. The process also generates very little heat, which prevents damage to insulation materials surrounding the wires.
This technology is particularly beneficial in motor manufacturing, where winding wires must maintain stable electrical performance throughout the lifetime of the motor.
Working Principle of Ultrasonic Wire Welding
Ultrasonic welding works by converting electrical energy into high-frequency mechanical vibrations. These vibrations are transmitted to the wires through a specially designed welding horn.
The welding process involves the following steps:
- The wires are positioned on the welding anvil.
- The ultrasonic horn applies controlled pressure.
- High-frequency vibrations at 20 kHz are applied.
- The vibrations break down oxide layers on the metal surface.
- Clean metal surfaces bond together under pressure.
This process results in a strong metallurgical bond with very low electrical resistance.
Key Features of the altrAsonix Ultrasonic Wire Welding Machine
High-Performance Ultrasonic System
The machine operates at 20 kHz frequency with powerful ultrasonic energy to ensure strong and reliable welding results.
Strong Electrical Connections
Ultrasonic welding produces joints with excellent electrical conductivity and minimal resistance.
Flux-Free and Solder-Free Welding
The process eliminates the need for solder, flux, or filler materials, making it cleaner and more environmentally friendly.
Fast Production Cycles
Ultrasonic welding requires only a fraction of a second to complete each weld, significantly increasing production efficiency.
Digital Process Control
The machine includes a digital control system that allows precise adjustment of welding parameters such as time, pressure, and energy.
Compact Industrial Design
The equipment is designed to fit easily into production lines while maintaining strong and stable mechanical construction.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | altrAsonix |
| Model | ASX-5000 |
| Welding Technology | Ultrasonic Metal Welding |
| Frequency | 20 kHz |
| Power | 5000 Watt |
| Welding Capacity | 0.5 – 25 sqmm |
| Welding Time | 0.2 – 1.5 seconds |
| Compatible Materials | Copper / Aluminum |
| Control System | Digital |
| Cooling Method | Air Cooling |
| Power Supply | 220V / 50–60 Hz |
Applications
The altrAsonix ultrasonic wire welding machine is widely used across various industrial sectors.
Electric Motor Manufacturing
Ultrasonic welding is commonly used for connecting motor winding wires to ensure strong and reliable electrical performance.
Automotive Industry
The machine is used for welding wires in automotive wiring harness systems and electric vehicle components.
Transformer Production
Ultrasonic welding is used to connect transformer winding wires with high precision.
Generator Manufacturing
Generator coil wires can be welded quickly and reliably using ultrasonic technology.
Electrical Cable Assembly
The machine is suitable for cable splicing and electrical wire connections.
Battery Pack Assembly
Ultrasonic welding is also used for connecting battery wires in energy storage systems.
Materials That Can Be Welded
The altrAsonix ultrasonic wire welding machine is designed to weld a wide range of conductive materials.
Compatible materials include:
- Copper wires
- Aluminum wires
- Copper-to-copper joints
- Aluminum-to-aluminum joints
- Copper-to-aluminum joints
- Multi-strand motor winding wires
Advantages of Ultrasonic Wire Welding Technology
Ultrasonic welding offers several advantages compared with traditional wire joining methods.
High Electrical Conductivity
Ultrasonic welding produces low-resistance electrical joints that improve performance.
Strong Mechanical Strength
The solid-state bonding process ensures long-lasting durability.
No Additional Materials Required
There is no need for solder, flux, or adhesives.
Minimal Heat Generation
Low heat protects wire insulation and surrounding components.
Fast Production Speed
The welding process is extremely fast, improving manufacturing efficiency.
Environmentally Friendly
The process does not generate harmful fumes or chemical waste.
Why Choose altrAsonix
altrAsonix is dedicated to delivering high-quality ultrasonic welding solutions for industrial manufacturing. The company focuses on developing reliable and efficient ultrasonic systems that help manufacturers improve productivity, reduce costs, and achieve consistent welding quality.
With strong engineering expertise and advanced ultrasonic technology, altrAsonix machines are trusted by industries that require precision metal welding for electrical and electronic components.
